HyperSwap // GPU Program Swapper & Memory Orchestrator

HyperSwap is an ultra-low-latency VRAM arbitrator, host RAM cache pre-warmer, dynamic hardware overclocker, and real-time telemetry dashboard designed specifically for Linux deployment machines that simultaneously host Ollama LLM workloads and ComfyUI Diffusion pipelines on a single NVIDIA GPU.

---

Real-Time Telemetry & Control Dashboard

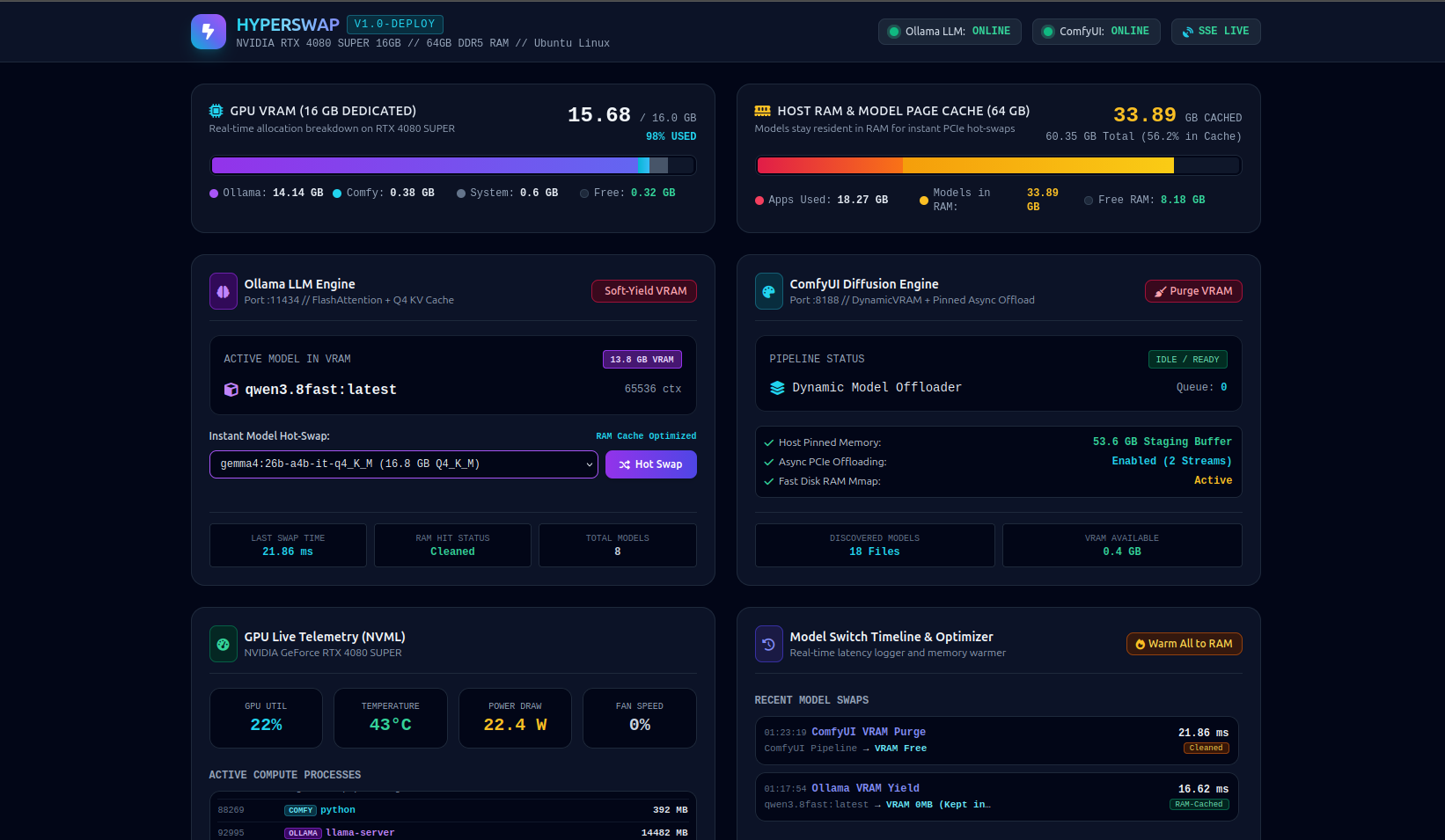

The HyperSwap live dashboard running on :9090, demonstrating real-time VRAM allocation tracking (Ollama 14.14 GB, ComfyUI 0.38 GB, Desktop 0.6 GB), 33.89 GB of models resident in 64GB host RAM cache, live dual-axis memory charts, hardware fan control, and sub-25ms model VRAM purges and soft-yields.

---

1. Feature Matrix

⚡ Bidirectional VRAM Hot-Swapping & Arbitration

• Sub-25ms Soft-Yield: Instantly releases Ollama VRAM allocations (keep_alive: 0) down to 0 MB when ComfyUI needs to run diffusion workloads without evicting weights from system RAM.
• Auto-Purge for ComfyUI: Automatically purges diffusion pipeline checkpoints and VRAM buffers when an image/video generation job finishes, releasing 100% of VRAM back to Ollama.
• Real-Time ComfyUI WebSocket & Watchdog Listener: Subscribes directly to ws://127.0.0.1:8188/ws and runs a 300ms watchdog loop to detect prompt queueing and node execution in real time.
• Process-Level VRAM Attribution: Live NVML process inspection attributes exact GPU memory usage across Ollama (llama-server), ComfyUI (python), and Desktop display servers (gnome-shell, Xorg).
• Hot-Swap Transition History: Circular buffer logs all model switch events, swap durations (in ms), tokens/sec throughput, and RAM cache hit status (RAM Cache Hit ⚡ vs Cold Disk Load 💾).

🧠 64GB Host RAM Cache & Page Pre-warmer

• Zero-Latency Model Discovery: Automatic cataloging of all local Ollama models (/usr/share/ollama/.ollama/models, ~/.ollama/models) and ComfyUI model directories (checkpoints, diffusion_models, unet, vae, clip, loras, controlnet).
• POSIX fadvise & Pinned Pre-warmer: Pre-faults multi-gigabyte GGUFs and Safetensors into the Linux OS Page Cache so that reloading models across PCIe 4.0 x16 runs at ~31.5 GB/s (sub-second VRAM loads).
• Granular Pre-warming Controls: Pre-warm all discovered models in bulk or target individual models/safetensors on demand.
• Memory Telemetry: Real-time breakdown of Total Host RAM, Applications Memory, Active Model Page Cache, Free Memory, and Cache Residency Ratio.

🎛️ Dynamic Overclocking & Thermal Management

• Workload-Aware Overclock Profiles:
  • ollama Profile (Memory-Bandwidth Bound): Max 370W power limit, +150 MHz Core Offset, +825 MHz Memory Offset, and 100% fan speed for maximum prompt eval / generation bandwidth.
  • comfy Profile (Compute Bound): Max 370W power limit, +100 MHz Core Offset, +500 MHz Memory Offset, Core Clock locked to 2900–3105 MHz, and 75% fan speed for maximum diffusion compute.
  • balanced Profile (Stock/General Purpose): Unlocked 370W power limit with stock dynamic boost curves and automatic fan control.
• Hardware Actuation Hierarchy:
  • Level 1: Power Limit Control (nvidia-smi -pl 370).
  • Level 2: Core & Memory Clock Locking (nvidia-smi -lgc / -lmc).
  • Level 3: Clock Offsets via headless X display (:8) with Coolbits support (nvidia-settings).
• Hardware Fan Control: Switch between auto and manual PWM control (30%–100%) with synchronized dual-fan actuation ([fan:0] and [fan:1]).
• Automated Lockstep Profile Switching: AutoArbitrator automatically switches hardware profiles in lockstep with the active workload (comfy on generation start, ollama on completion).

📊 Real-Time Web Telemetry Dashboard (:9090)

• Live Hardware Telemetry: GPU utilization %, GPU temperature (°C), power draw (W), fan speeds (%), and graphics/memory clock frequencies (MHz).
• Live Dual-Axis Time-Series Chart: Real-time graphical visualization of VRAM usage (GB) and Host RAM Cache (GB) with zero frontend polling overhead.
• Interactive Control Center: Trigger model hot-swaps, soft-yields, cache pre-warms, fan adjustments, and benchmarks directly from the web interface.
• Server-Sent Events (SSE): Pushes unified 1Hz telemetry updates via GET /api/stream.

🤖 Model Context Protocol (MCP 2.0) Server

• 12 Native Agentic Tools: Allows AI agents (Antigravity CLI, Claude Desktop, Cursor) to manage GPU resources, trigger model hot-swaps, tune fan curves, and inspect telemetry.
• 3 Live MCP Resources: Exposes live metrics, model catalogs, and switch logs as streamable resources (gpu://metrics/live, gpu://models/catalog, gpu://history/switches).
• Dual Transport Support: Run via standard input/output (--stdio) or network Server-Sent Events (--sse --port 8001).

⏱️ Automated Latency & Throughput Benchmark Engine

• Conducts automated round-trip model switching benchmarks to measure transition latency, model load time, tokens per second, and RAM cache effectiveness.

---

2. Architectural Overview

flowchart TD
    subgraph HostRAM["64 GB Host System RAM (Page Cache & Staging Buffer)"]
        OllamaGGUFs["Ollama GGUF Weights<br/>(Qwen, Gemma, Nemotron)"]
        ComfySafetensors["ComfyUI Safetensors & VAEs<br/>(Wan2.1, Flux, SDXL)"]
    end

    subgraph GPU["NVIDIA GeForce RTX 4080 SUPER (16 GB VRAM)"]
        direction LR
        ActiveLLM["Active LLM<br/>(0–15 GB VRAM)"]
        ActiveDiffusion["Active Diffusion Pipeline<br/>(0–15 GB VRAM)"]
    end

    subgraph Orchestrator["HyperSwap Control Plane (:9090)"]
        REST["REST API & OpenAPI Docs"]
        MCP["Model Context Protocol (MCP 2.0)"]
        SSE["1Hz Real-Time SSE Stream"]
        Arbitrator["VRAM Arbitrator (15ms Soft-Yield)"]
        Overclock["Overclock & Fan Manager"]
        Warmer["Page Cache Pre-Warmer"]
    end

    HostRAM <== "PCIe 4.0 x16 Bus (~31.5 GB/s Hot-Swap)" ==> GPU
    Orchestrator --> GPU
    Orchestrator --> HostRAM

The Physics of Sub-Second Switching

• Host RAM as Staging: Active LLMs and diffusion checkpoints remain resident in the 64GB Linux Page Cache.
• PCIe 4.0 x16 Hot-Swapping: Transferring weights across PCIe 4.0 x16 achieves ~31.5 GB/s bandwidth, reducing model loads from 30+ seconds (disk) to under 1.5 seconds.
• Soft-Yielding: Dropping Ollama's VRAM allocation via keep_alive: 0 takes ~15ms while preserving the weights in host RAM.

---

3. REST API Reference

The HyperSwap server runs on port 9090 by default. Interactive OpenAPI/Swagger docs are available at http://localhost:9090/docs.

Telemetry & Hardware Endpoints

Endpoint	Method	Description
/api/stats	GET	Complete unified JSON snapshot of hardware sensors, VRAM breakdown, host RAM, Ollama status, ComfyUI queue, and switch logs.
/api/gpu	GET	NVIDIA GPU sensors (utilization %, temperature, power draw in Watts, fan speeds, clocks, and active PIDs).
/api/memory	GET	Precise /proc/meminfo metrics (Total, Used, OS Page Cache containing models, Free memory).
/api/gpu/fan	GET	Current GPU fan mode (auto vs manual), target speed %, and live fan RPM/PWM status.
/api/gpu/fan	POST	Sets GPU fan speed mode (auto or manual) with target speed % (30–100%).
/api/overclock	GET	Active overclock profile, configured profiles, GPU clock limits, and fan status.
/api/overclock/apply	POST	Applies a named profile (ollama, comfy, balanced).
/api/overclock/profile	POST	Creates or updates an overclock profile configuration.
/api/stream	GET	Server-Sent Events (SSE) stream pushing full telemetry updates at 1Hz (text/event-stream).

Model Orchestration & Hot-Swap Endpoints

Endpoint	Method	Description
/api/switch-model	POST	Hot-swaps the active Ollama LLM in VRAM and tracks transition timing.
/api/free-vram	POST	Instructs Ollama to soft-yield VRAM down to 0 MB in ~15ms while retaining RAM cache.
/api/comfy-free	POST	Instructs ComfyUI to purge loaded diffusion weights and VRAM cache.
/api/warm-all	POST	Pre-faults all installed Ollama models and ComfyUI Safetensors into the Linux page cache.
/api/warm-model	POST	Pre-warms a specific model or file into RAM.
/api/benchmark	POST	Runs an automated back-and-forth model swap benchmark and calculates average latency.

---

4. Model Context Protocol (MCP 2.0) Reference

HyperSwap includes a native MCP 2.0 server (mcp_server.py) exposing orchestration and telemetry tools to AI agents.

MCP Tools List

Tool Name	Parameters	Description
get_gpu_status	None	Live NVIDIA GPU hardware telemetry, VRAM breakdown, temps, power, fan %, and PIDs.
get_gpu_fan_status	None	Current GPU fan mode (auto/manual) and target fan percentage.
set_gpu_fan_speed	mode (str), percent (optional int)	Sets fan speed mode (auto|manual) and target PWM % (30–100%).
get_host_memory_status	None	64GB host RAM breakdown, active page cache size, and cache ratio.
switch_ollama_model	model_name (str), keep_alive (str)	Hot-swaps active LLM in VRAM, measures latency (ms) and tokens/sec.
soft_yield_ollama_vram	model_name (optional str)	Yields Ollama VRAM to 0 MB in ~15ms while keeping model weights in RAM cache.
purge_comfyui_vram	None	Purges loaded diffusion models from ComfyUI pipeline VRAM.
prewarm_all_models_to_ram	None	Faults all local LLM and diffusion checkpoints into Linux OS page cache.
prewarm_single_model	model_name (optional str), filepath (optional str)	Pre-warms a single GGUF or Safetensors file into RAM.
list_available_models	None	Lists all installed Ollama models and discovered ComfyUI Safetensors on disk.
get_switch_history	limit (int, default 20)	Retrieves recent switch events, millisecond latencies, and RAM hit status.
run_model_switch_benchmark	iterations (int, default 2)	Automated round-trip latency benchmark between installed models.

MCP Resources List

• gpu://metrics/live: Real-time snapshot of GPU sensors and RAM page cache.
• gpu://models/catalog: Catalog of all discovered GGUF and Safetensors models.
• gpu://history/switches: Event log of recent model transitions and swap speeds.

---

MCP Client Configurations

Antigravity Configuration (~/.gemini/antigravity-cli/mcp_config.json)

{
  "mcpServers": {
    "hyperswap": {
      "command": "/home/drjones/comfy-mcp-venv/bin/python",
      "args": ["/home/drjones/unified-model-manager/mcp_server.py", "--stdio"]
    }
  }
}

Claude Desktop Configuration (claude_desktop_config.json)

{
  "mcpServers": {
    "hyperswap": {
      "command": "/home/drjones/comfy-mcp-venv/bin/python",
      "args": ["/home/drjones/unified-model-manager/mcp_server.py", "--stdio"]
    }
  }
}

---

5. Linux Kernel & Host Tuning

To ensure that model weights remain permanently in RAM without kernel eviction:

# Set CPU scaling governor to performance
sudo cpupower frequency-set -g performance

# Configure sysctl optimizations in /etc/sysctl.d/99-hyperswap.conf
cat << 'EOF' | sudo tee /etc/sysctl.d/99-hyperswap.conf
# Retain model file cache aggressively in RAM
vm.vfs_cache_pressure = 50

# Prevent swapping cached models
vm.swappiness = 10

# Support large memory maps for high-parameter models
vm.max_map_count = 1048576

# Flush dirty pages quickly
vm.dirty_background_ratio = 5
vm.dirty_ratio = 10
EOF

# Apply sysctl settings immediately
sudo sysctl --system

---

6. Systemd Service Management

The HyperSwap server runs as a systemd service:

# Check service status
systemctl status hyperswap.service

# Restart service
sudo systemctl restart hyperswap.service

# View live telemetry and arbitration logs
journalctl -u hyperswap.service -f

---

7. License

MIT License. Developed for Google Antigravity & High-Throughput Linux AI Deployments.
